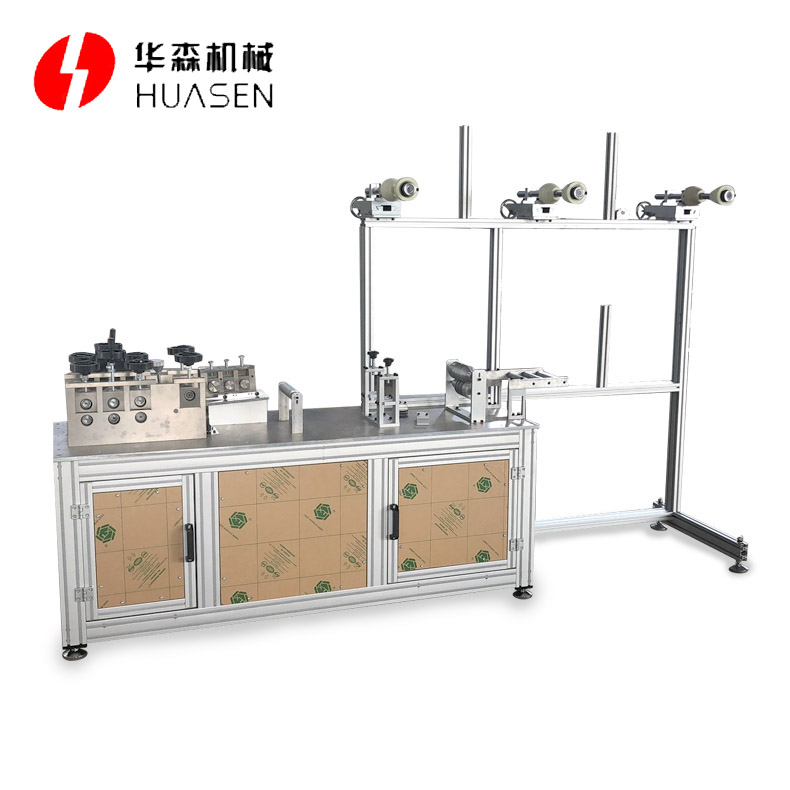

苏州全自动一次性口罩机一拖一口罩生产线

详细介绍

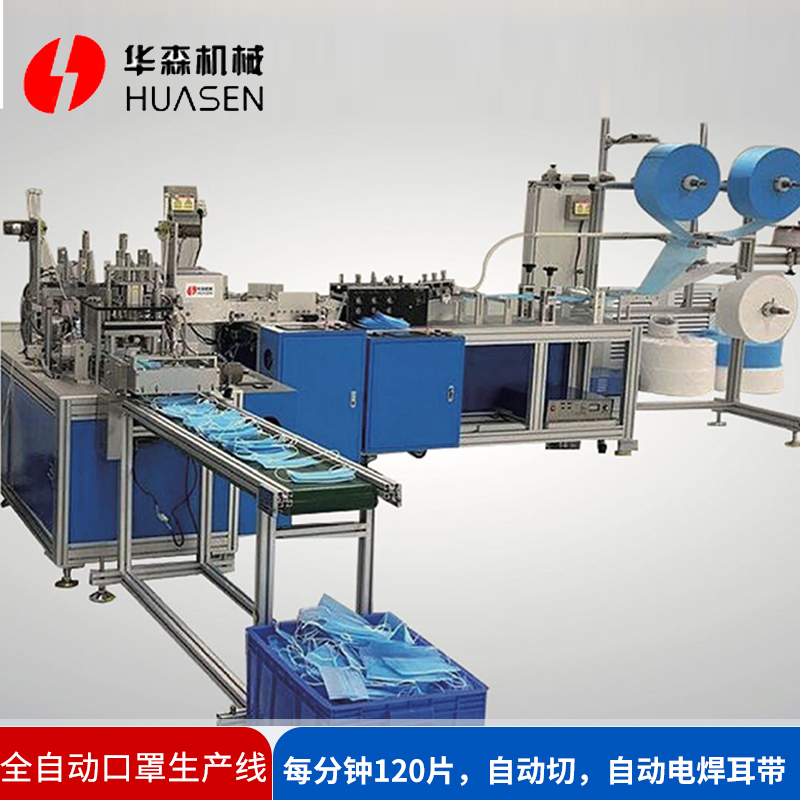

全自动一次性口罩机一拖一口罩生产线设备

一．用途与特点：USE AND CHARACTERISTICS

1. 适用于医用、民用3层口罩自动化生产。

It is suitable for the automated production of medical and civilian 3 layers masks.

2. 3层面料自动对边，超声波连续点焊成型，自动切片，自动堆垛。

Three layers of fabrics are automatically edged ,ultrasonic continuous spot welding forming, automatic slicing and stacking .

3. 全伺服控制，可高速运转，效率可达120片/分钟。

Full servo control,high-speed operation, theefficiency can be up to 120 pieces/min.

4. 采用一拖一设计，结构紧凑，性能可靠，节省人工。

Adopting one-for-one design ,compact struture ,reliable performance and labor saving.

5. 耳带装配采用自动送料自动切断自动焊接，一次成型。

The ear straps are assembled by using automatic feeding, automatic cutting,and automatic welding.

6. 自动输送鼻夹条，自动切断，自动定位。

Automatic nose bridge bar transfer, automatic cut-off, automatic positioning.

二．主要技术参数：TECHNICAL SPECIFICATION

型号	Model	HSPM-2020A	HSPM-2020A
生产效率	Working efficiency330088客家论坛	120片/分钟	120pcs/min
适用产品规格330088客家论坛	Applicable product specifications	*17595mm**	*17595mm**
适用材料330088客家论坛	Applicable materials	PP无纺布复合纤维	PP Non-woven composite fiber
适用层数	Number of applicable layers	3层	3layers330088客家论坛
主电机功率330088客家论坛	Main motor power	1.5KW	1.5kw
主超声波功率330088客家论坛	Main ultrasonic power330088客家论坛	2.6KW	2.6kw330088客家论坛
耳带超声波功率	Earband ultrasound power330088客家论坛	*2KW2=4KW**	*2kw2=4kw**
总功率	Total power	11KW	11kw330088客家论坛
气源	Gas source330088客家论坛	0.5-0.8Mpa	0.5-0.8Mpa
外形尺寸330088客家论坛	Dimensions330088客家论坛	*4500400018000mm*	*450040001800mm*330088客家论坛
